Applicable materials: slate,stone tablet, marble, granite and other high-hardness materials, ceramic tiles, tombstones, milestones, sarcophagi, etc.
Applicable industries: stone construction, relief decoration, mold industry, advertising industry
Advantages:
(1) Steel structure welded body, good rigidity and no deformation, worktable backing steel plate, high strength, good rigidity, and good bearing capacity of the machine.
(2) Compatible with Beijing Jingdiao/Wentai/CAD/Type3/Artcam and other softwares
(3) The engraving system has the function of resuming engraving with breakpoint and power off, and can be processed in the event of power failure or the next day.

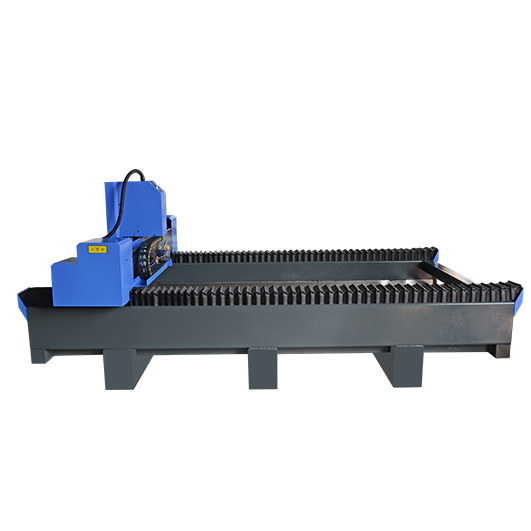

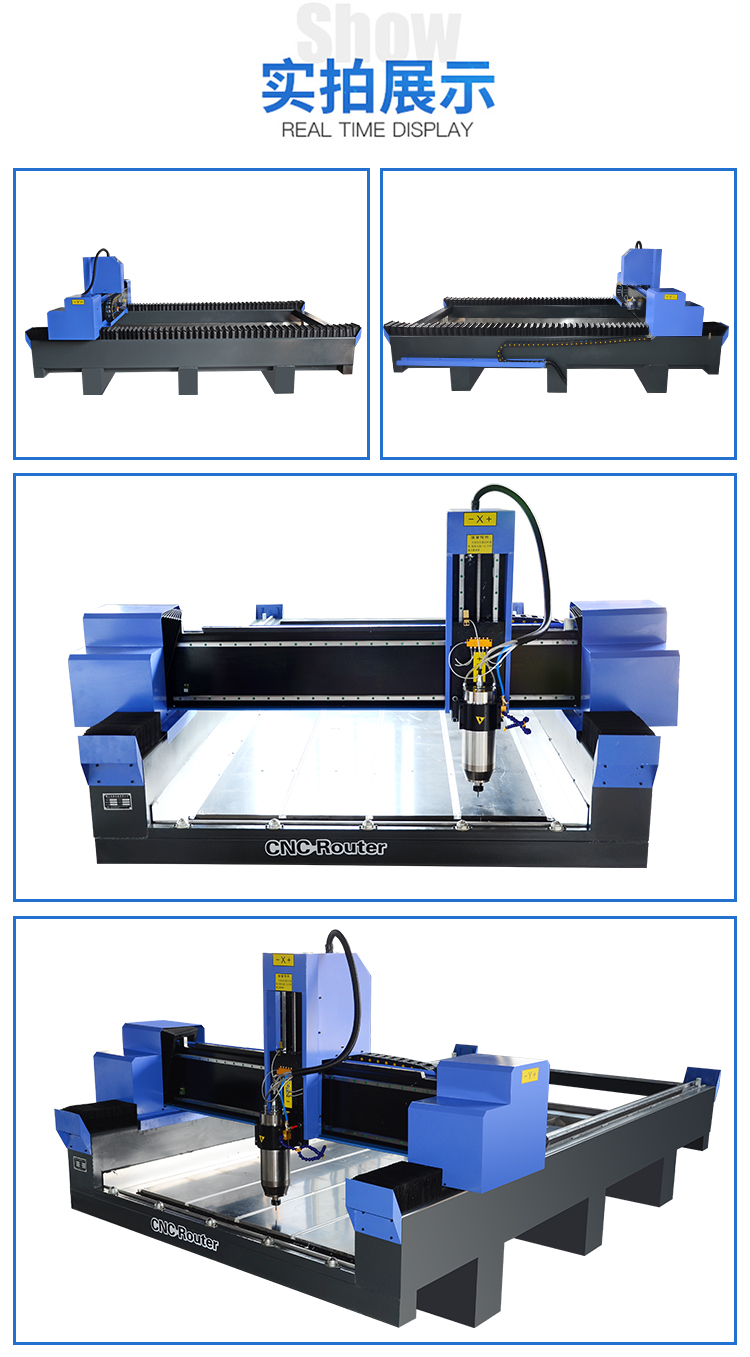

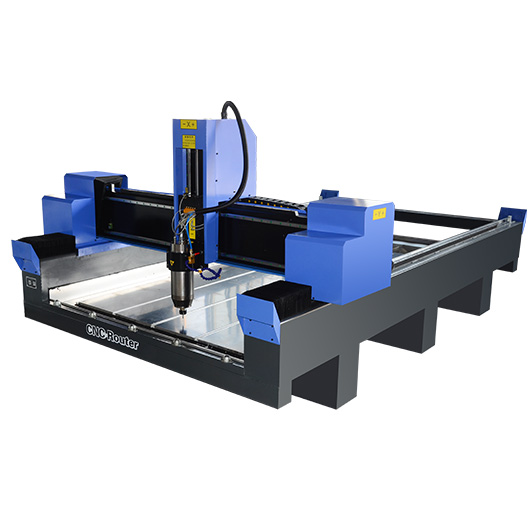

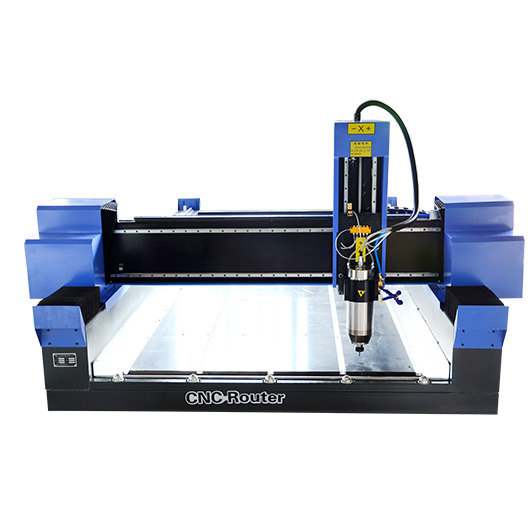

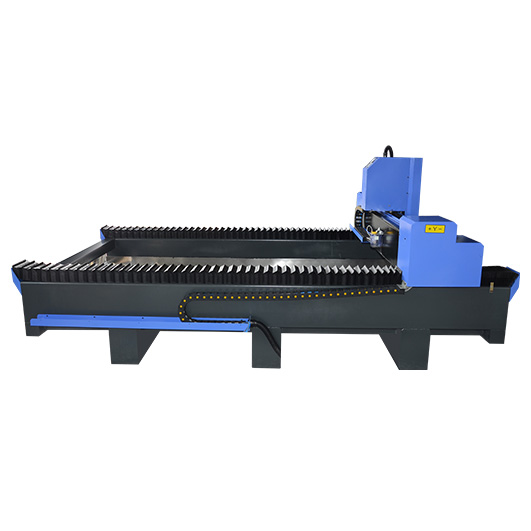

Product Name/Model | Heavy Duty CNC Router for Stone, SL-1325S |
Working size | 1300*2500*300mm |
Re-position accuracy | ＜0.05mm/1000mm |
Table/gantry structure | Aluminum T Slot+PVC，Steel pipe gantry |
Machine body | Welded with square pipe (with horseshoe) |
Motor & Driver | Stepper （Hybrid Servo/Servo are optional） |
Spindle Power | 3.0KW,5.5KW water/air cooling（optional） |
Spindle RPM | 6000-24000r/min |
Working Voltage | 220V 50hz/380V50hz |
Command Code | G Code、F/S command is compatible |
Max running speed | 15M/Min |
Transmission mode | Gear wheel for XY axis, ball screw for Z axis |
Control system | NcStudio/RichAuto/Mach3(optional) |
Frequency Converter | Best |
Square mode | 20/25 Square Linear Guide Rail（optional） |
Material Fixing way | Clamp/Vacuum table (optional) |
Dimension | 3200*2200*1600mm |
Weight | 1500kg |
Machine color | Black and Red /Blue and White(optional) |
